Oil Burner Nozzles
Monarch Precision Nozzles for Domestic Oil Burners and Heating Units. The MONARCH nozzle is an important component of clean and flawless combustion. For decades, burner manufacturers, servicemen, wholesalers and tradesmen have choosen the MONARCH nozzle for its precision, efficiency, and long life resistance. Monarch is participating on committees for the development of European CEN standards, to be adopted in the near future.
MONARCH - Constant evolution! A step ahead.
Carbon Black Nozzle
The F-94 Nozzle is available in a wide range of spray angles for many diverse applications. A unique spirally milled core or “disc” produces a high velocity spinning action that gives a solid cone distribution of medium atomization. This Nozzle is particularly successful for dust suppression, industrial washers, coal washing and the production of carbon black.
AAMA-kit for large capacity water nozzle
The B-25 Nozzles are of two piece construction with large tangential metering slots in the internal Disc to give a nonrestricted flow with a uniform “Solid” distribution. For special applications, a hollow cone spray can be produced from this same design. These Nozzles with high flow rates and coarser sprays are used in gas scrubbing, adsorption towers, brine spraying, and chemical and industrial processing.
Our products
Choose your nozzle type
- All
- Industrial Oil Nozzles
- Water Nozzles
- Carbon Black Nozzles
- AAMA Test Nozzles
- Oil Burner Nozzles
- Accessories
-
H-545The H-545 is our basic flat spray construction, with a "U" notch milling and rectangular orifice. A “fat” sheet is…Water Nozzles -
B-25 large capacity AAMA kitThe B-25 Nozzles are of two piece construction with large tangential metering slots in the internal Disc to give a…AAMA Test Nozzles -
D-41 (HO)The Fig. D-41 direct pressure operated Industrial Oil Nozzle will spray oils having an operating viscosity as high as 100…Industrial Oil Nozzles -
M2PThe “M” or “Midget” series is designed to meet the needs of a very small, efficient, inexpensive nozzle. They are…Water Nozzles -
E-180-HThe E-180-H Nozzles is large Industrial Nozzles in which the orifice flow is varied by by-passing or “bleeding” liquid from…Industrial Oil Nozzles -
H-530The H-530 is a simple Nozzle which is a variation of the nonclog principle. Nozzle consists of two parts, the…Water Nozzles -
H-535The H-535 is a single nozzle, one piece. The unique “V” of the oval hole milling and produce a very…Water Nozzles -
BPS BY-PASSINGThe BPS nozzles produce variable orifice flow rates by by-passing fluid from the nozzle swirl chamber. The orifice flow is…Industrial Oil Nozzles -
H-601 air operatedThe H-601 Nozzle is air or steam operated and produces an extremely fine, fog-like atomization. This aspirating Nozzle requires no…Water Nozzles -
C-206 Air Operated NozzleMonarch offers a superior line of nozzles including the C-206 Air Operated Nozzles. This series is widely used on industrial…Industrial Oil Nozzles -
H-261(-CJ)The H-261 direct pressure operated Nozzle produces a very fine hollow cone spray similar to the F-80 Nozzle. However, it…Water Nozzles -
HOOIL BURNER NOZZLES Find out more Oil burner nozzles data sheet Monarch produces oil burner nozzles for all oils with…Oil Burner Nozzles

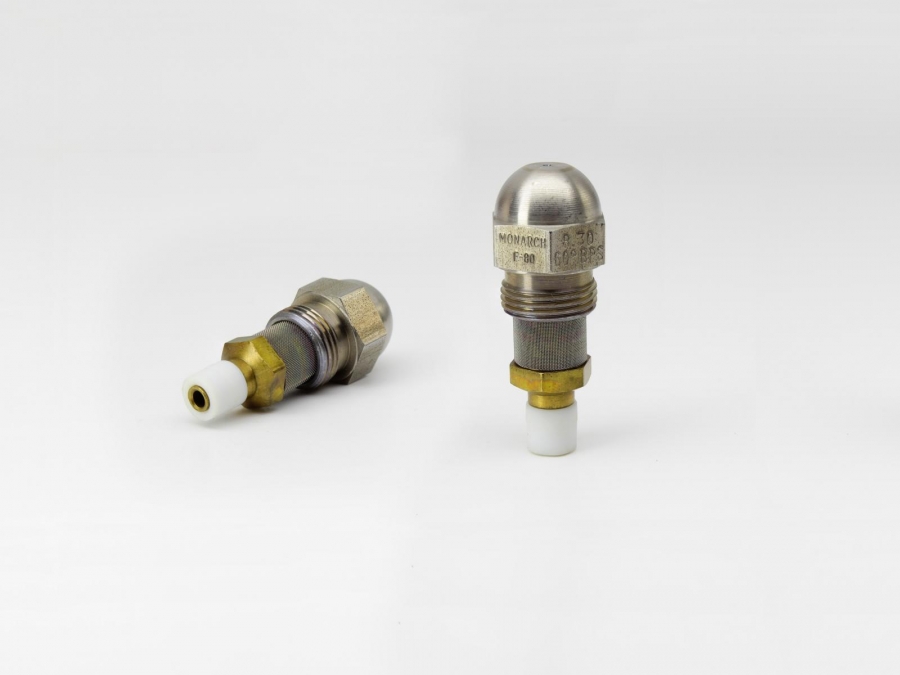

THE MONARCH HIGH-PERFORMANCE NOZZLE
Monarch Precision Nozzles for Domestic Oil Burners and Heating Units
The MONARCH nozzle is an important component of clean and flawless combustion. For decades, burner manufacturers, servicemen, wholesalers and tradesmen have choosen the MONARCH nozzle for its precision, efficiency, and long life resistance. Monarch is participating on committees for the development of European CEN standards, to be adopted in the near future.
Different series available: R, NS, AR, PLP, PL, HV
Find out more
100%
Quality- and functional tested MONARCH nozzles
Only Monarch completely tests each and every nozzle… …individually. Sure, other manufacturers may say they test every nozzle. We know better and so should you. Only Monarch invests the time and money to perform 100% testing. That means each and every nozzle we make without exception. It’s simply impossible to buy a Monarch nozzle that hasn’t been tested and passed by our testing experts. Our tests include:
1. Flow Rate/Capacity. One by one, nozzle tips are tested at 100psi against calibrated matter samples. Flow must register within strict limits.
2. Spray Angle. Our testers check every nozzle to be certain it’s spray angle is within tolerance. Whether 30° or 90° or any angle in between is called for, Monarch nozzles meet all burner manufacturer’s recommendations.
3. Spray Balance. The nozzle is rotated 360° to be observed from every direction. Testers assure that the spray is symmetrical about its axis.
4. Spray Quality. A high intensity light is used to illuminate the spray. If shadows or streaks are observed, if there is a speck of dirt or surface defect at the orifice…that nozzle is rejected.
5. High Pressure Flutter. Pressure is boosted to 150 psi to magnify any defect and to be certain there is no pulsation or “flutter” that might otherwise escape detection. If our nozzles are “perfect” at both 100 and 150 psi, you can be certain they will perform for you.
